The machine reaches the set temperature, yet the replacement BGA still fails inspection. That situation is more common than buyers expect. A BGA Rework Station must do more than produce heat; it must control how that heat reaches the component, solder joints and PCB.
Ball grid array components hide their solder connections beneath the package, so technicians cannot inspect them like ordinary leaded components. IPC-7095E covers design and assembly process implementation for BGA devices, including rework and repair. Buying a station based only on price or advertised wattage is a bad procurement decision. It ignores the variables that determine whether the board survives.
Specifications That Decide Whether a BGA Rework Station Is Suitable
A professional machine combines controlled heating, PCB support, component alignment and temperature profiling. Reliable Spares & Consumables currently lists semi-automatic OAKY equipment with a maximum PCB capacity of 400 × 400 mm, a three-zone heating system, 230 V input and 240 V-rated operation.
Heating Method and Independent Zone Control
Hot-air systems offer nozzle-based heat delivery, while infrared systems transfer heat without direct airflow. Some machines combine both methods. Three-zone equipment heats the component from above while preheating and supporting the board thermally from below.
That lower heater is not an optional extra on thick or multilayer boards.
Without balanced bottom-side preheating, the temperature difference across a PCB can cause warpage, pad damage or incomplete solder reflow. Buyers should ask whether every heating zone can be independently programmed and monitored.
Temperature Profiling and Thermocouple Feedback
A displayed setpoint is not proof of the actual solder-joint temperature. Profile development guidance recommends measuring beneath the centre of the BGA because centre joints can remain cooler than joints around the outer rows.
Nobody tells you how much trial work profile development can take. Board thickness, copper density, package size and nearby components all alter heat absorption. Check the number of thermocouple inputs, profile storage capacity, ramp control and real-time graphing before approving a machine.
Alignment, Board Holding and Nozzle Coverage
Hidden solder balls demand accurate component placement. Camera-assisted or optical split-vision alignment becomes especially valuable for fine-pitch packages and repeat production.
Also inspect the PCB fixture. A loose holder can allow movement as the board expands during heating. Nozzle availability matters just as much: Reliable Spares & Consumables states that different BGA sizes require different nozzles, so compatibility should be confirmed against your actual package list.
Five Supplier Checks That Expose Weak Quotations
1. Ask for Heating Accuracy Under a Real Board Load
A credible supplier should demonstrate the station using a PCB comparable to yours and show readings from actual thermocouples. A bad answer sounds like, “The controller is digital, so the temperature is accurate.” A digital display proves nothing about heat distribution beneath the package.
2. Match the Working Area to Your Largest PCB
Submit the board dimensions, thickness and fixture-clearance requirements. The listed maximum capacity for the current station range is 400 × 400 mm, but usable space may reduce after clamping. “It supports all PCB sizes” is a lazy answer and should stop the purchase discussion.
3. Demand a Repeatable Alignment Demonstration
Ask the supplier to align, place and remove a component during the demonstration. Optical clarity, camera resolution, lighting and X-Y adjustment all affect placement. A bad supplier will show a promotional video instead of operating the quoted model.
4. Check Spares, Nozzles and Service Responsibility
Obtain a written list covering heaters, thermocouples, nozzles, vacuum pickups and control parts. The product page states that compatible parts and after-sales assistance are available. Still, verbal promises are worthless once a machine is down and a production supervisor is waiting.
5. Review Warranty and Operator Training in Writing
The quotation should define installation, training, warranty exclusions and service escalation. “We will handle any issue” is not a service policy. Ask who diagnoses the fault, who pays freight and what happens when a required spare is unavailable.
How the Right Equipment Protects Yield and Repair Margins
- Lower board-damage risk: Three-zone heating reduces severe thermal gradients that can warp boards or lift pads.
- More repeatable profiles: Stored programs limit operator-to-operator variation during recurring repair jobs.
- Fewer placement errors: Camera-assisted alignment helps position hidden ball arrays before reflow begins.
- Better labour control: Semi-automatic operation reduces repeated manual handling without removing technician oversight.
- Wider job acceptance: A 400 × 400 mm board capacity and interchangeable nozzles allow a service centre to process more board and package formats.
- Less unplanned downtime: Accessible spares and defined technical support protect revenue when a heater, sensor or vacuum component fails.
And yet, no machine guarantees a successful joint. Process discipline, flux selection, moisture control, operator training and post-rework inspection still determine the final result.
Finding BGA Rework Station Suppliers in India
Collaborate with BGA Rework Station Manufacturers in India to reduce the channels for communication and service as against taking an unsupported purchase from overseas. The company Reliable Spares & Consumables from Gurugram-Haryana mentions their ability to supply India on a PAN-India Logistics infrastructure.
For the target the NCR manufacturing Segments around Noida, Delhi, Gurgaon, the North, South or East of India, the local presence facilitates demo and technical talks. Buyers at far away locations should check the installation method or arrangement prior to shipping. Reliable BGA Rework Station Suppliers in India should quote the freight but supply packaging information, transit-insurance profile and remote-support procedure.
What We Supply and Support

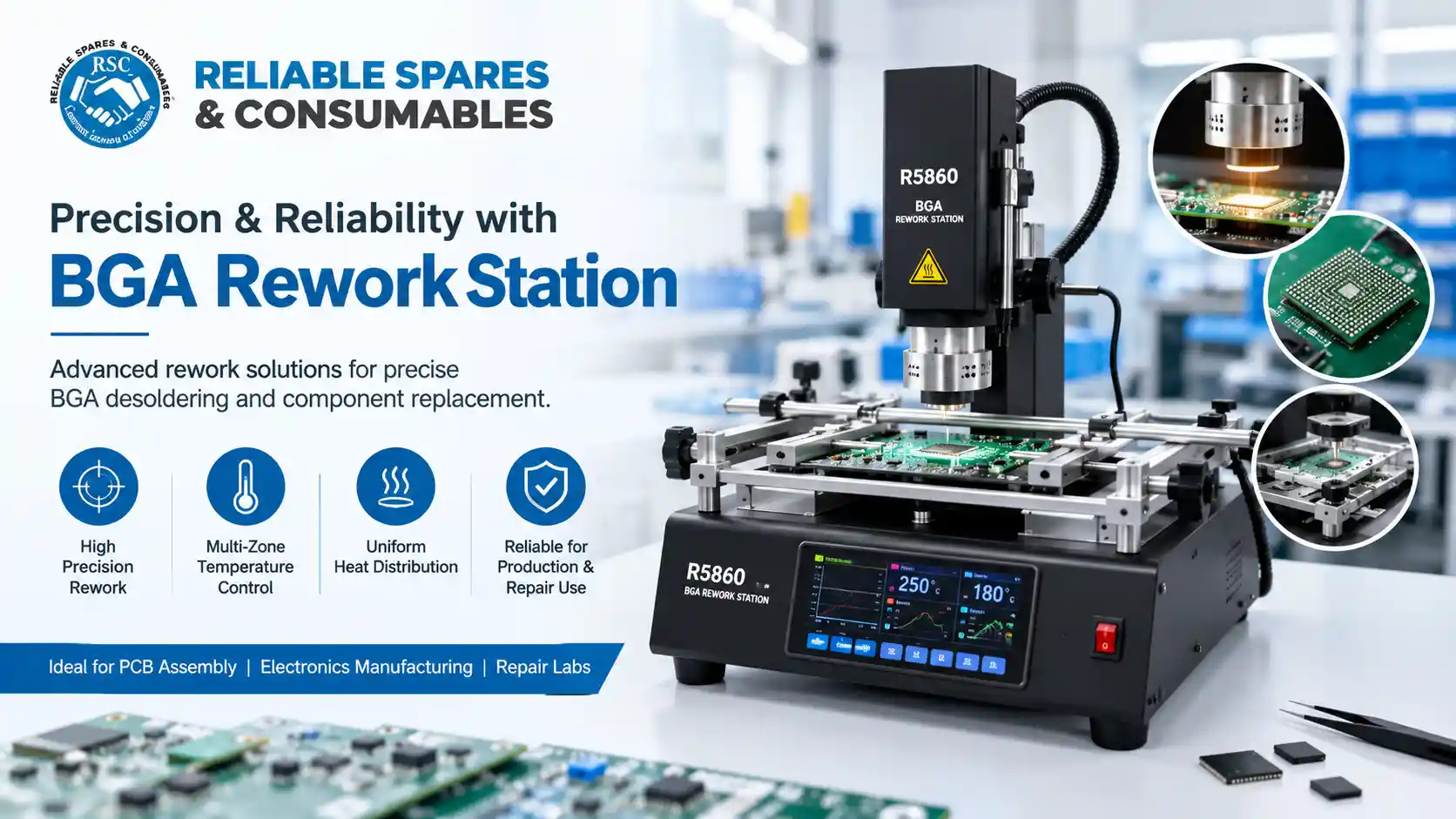

We bring 19 years of industry experience to ESD products and industrial electronics tools for PCB assembly, electronics production and repair facilities. Our currently listed BGA range includes the R5860 and R6860, along with model-selection guidance, compatible accessories, quality checks and PAN-India delivery support.
We know one practical detail buyers often discover too late: the machine model is only part of the purchase. If your nozzle set, board fixture or thermocouple arrangement does not match the daily job mix, the station will sit idle while technicians improvise.
Send us your maximum PCB dimensions, board thickness, BGA package sizes, solder type, expected daily rework volume and preferred automation level. We will use those details to recommend a suitable configuration and identify the required nozzles and accessories. We do not publish a fixed MOQ or guaranteed enquiry-response time on our website, so we will confirm both directly against your location and selected model. That is more honest than printing terms that may not apply to the order.
Choose Process Control, Not an Impressive Control Panel
A reliable BGA Rework Station should control heat, hold the PCB securely, align the component accurately and reproduce an approved profile. Ignore suppliers who avoid live demonstrations or leave service terms vague. Choose equipment that can support your actual boards today while leaving enough capacity for the packages your facility expects to handle next.
FAQs
1. What is the main purpose of a BGA Rework Station?
It removes and replaces BGA, CSP and other surface mounted packages using controlled heating. The process often consists of upper heat, bottom preheat, board holding and accurate component placement.
2. What should I ask BGA Rework Station Manufacturers before purchasing?
Require loaded-board temperature precision, PCB capacity, thermocouple inputs, suitable nozzles, alignment procedure, warranty coverage and a live demonstration. A catalogue cannot guarantee repeatable quality.
3. Do BGA Rework Station Manufacturers in India provide installation support?
Support varies by supplier and place of purchase. Reliable Spares & Consumables gives minimum service on installation and after sales but recommends its purchasers get the exact installation scope in writing.
4. How do I compare BGA Rework Station Suppliers?
Compare full configuration rather than price of base-machine. Verify included nozzles, fixtures, program, training, freight, warranty and spare-part inventories before comparing totals.
5. Can one station handle every PCB and BGA package?
No. Board size, thermal mass, component pitch and availability of nozzles impose practical limits. Even a 400 x 400 mm rated machine has less usable room for components with fixtures on board.
